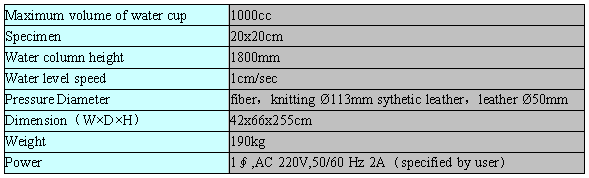

DL-6046 Waterproofing Tester

It`s used to test water-proof or leakage of fibre,synthetic leather,wrapped paper,etc.The test ways are:(i.e.get the average value of three operations,calculated to the first decimal)

(1)water pressure:raise water position at speed of 1cm/sec,the record the actual water position when three locations of surface of specimen get water penetration.

(2)Fixed water pressure:raise water position at certain height at speed of 1cm/sec.Then pause,immediately record the seconds when three locations of surface of specimen get water-penetration.

(3)Leakage measurement:raise water position to fixed distance(10cm).immediately stop raising the water to measure the water volume(ml)leaked during certain time.


     The test is up to the standard: JIS-L1092,L-1096、K6550
